Colore

Misure

Telaio

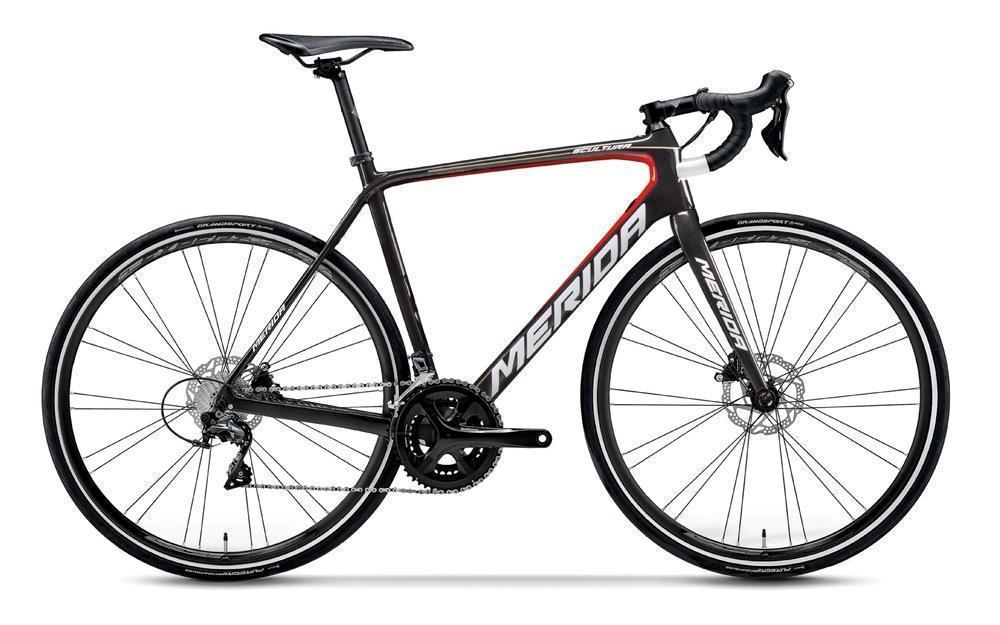

Scultura CF2 disc 12 [PF86]

Forcella

Scultura carbon pro 12 FM

Leve freno

Shimano Ultegra

Freno anteriore

Shimano Ultegra disc

Freno posteriore

Shimano Ultegra disc

Catena

KMC X11-1

Guarnitura

Shimano RS500 50-34

Cambio

Shimano Ultegra RD-R8000SS

Pacco pignoni

Shimano CS-5800-11 11-28

Piega manubrio

Merida Expert Compact road 31.8

Attacco manubrio

MERIDA Expert 31.8 -5

Serie sterzo

Merida M2331 Neck

Cerchi

Fulcrum Racing Expert disc F12/R12

Sella

Merida Sport

Cannotto reggisella

MERIDA carbon Comp SB15 27.2

Comando destro

Shimano Ultegra disc

Comando sinistro

Shimano Ultegra disc

Raggi

attached

Copertoni

Continental Grand Sport Race 25 fold

Serie movimento

Shimano Pressfit BB71

Morsetto Sella

Merida Expert clamp

Manopole

Merida Road Expert

Deragliatore

Shimano Ultegra DF

Peso

N/D

FS - Frame size (mm)

XXS(44)

XS(47)

S(50)

SM(52)

ML(54)

L(56)

XL(59)

ST - Seat tube (mm)

440

470

500

520

540

560

590

TT - Top tube (mm)

515

520

530

545

560

575

590

HT - Head tube (mm)

120

130

140

150

170

190

215

HTA - Head tube angle (°)

71

71

72

73

73

73

73.5

STA - Seat tube angle (°)

75

74

74

74

73

73

73

CS - Chain stay lenght (mm)

408

408

408

408

408

408

408

BD - Bottom bracked drop (mm)

66

66

66

66

66

66

66

FO - Fork lenght (mm)

375

375

375

375

375

375

375

SH - Stand over height (mm)

701

720

750

769

787

807

836

S - Stack (mm)

519

529

542

555

574

593

619

R - Reach (mm)

376

373

375

386

390

394

401

WB - Wheel base (mm)

982

983

979

985

998

1005

1014
