Colore

Misure

Telaio

REACTO CF2 disc

Forcella

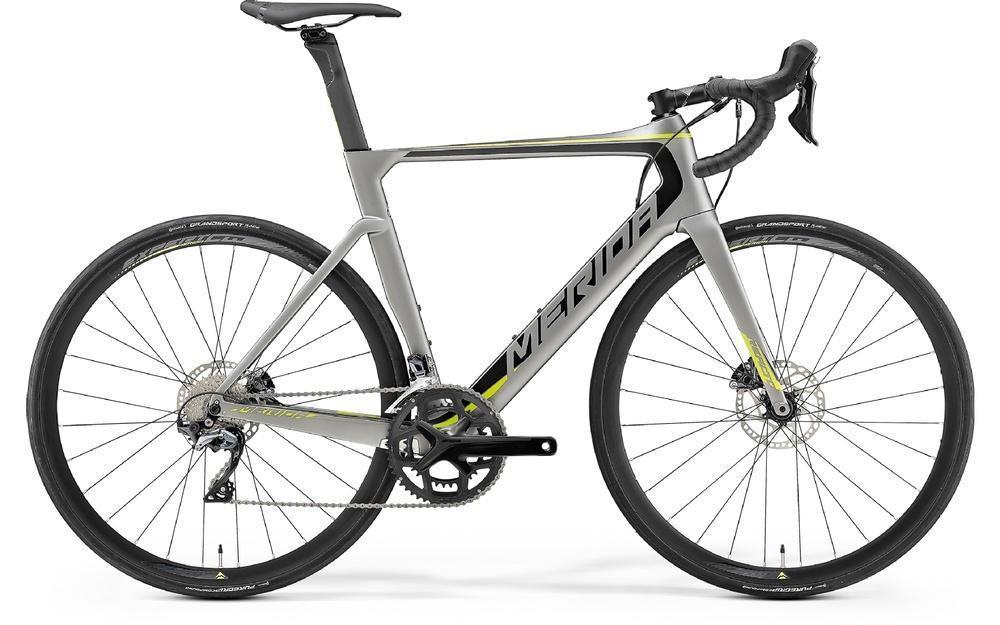

Merida REACTO CF2 disc

Leve freno

Shimano Ultegra

Freno anteriore

Shimano Ultegra; Disc

Freno posteriore

Shimano Ultegra; Disc

Catena

KMC X11-1

Guarnitura

FSA Gossamer Pro; 52-36T

Cambio

Shimano Ultegra; GS

Pacco pignoni

Shimano CS-R7000; 11-30 T; 11 S

Piega manubrio

Merida Expert CW; 31.8 D

Attacco manubrio

MERIDA Expert CC; 31.8mm diameter; -5° stem angle

Serie sterzo

Merida Reacto neck

Mozzo anteriore

Bearing Centerlock; 100x12 WHF; 28H

Mozzo Posteriore

VP CLK270R; 142x12 WHR; 28 SPH; centerlock

Cerchi

Merida Expert CW pair disc

Sella

Merida Comp SL

Cannotto reggisella

MERIDA Expert CW; Aero shape; 15 SSB; Carbon

Comando destro

Shimano Ultegra disc

Comando sinistro

Shimano Ultegra disc

Raggi

Double Butted Black stainless

Copertoni

Continental Grand Sport Race; 700x25C; fold

Serie movimento

FSA 386-BB30 PF6000 [FSA FC]

Morsetto Sella

Merida REACTO Aero

Manopole

Merida Road Expert

Deragliatore

Shimano Ultegra DF

Peso

8,65

FS - Frame size (mm)

XXS(44)

XS(47)

S(50)

SM(52)

ML(54)

L(56)

XL(59)

ST - Seat tube (mm)

440

470

500

520

540

560

590

TT - Top tube (mm)

515

520

535

545

560

575

590

HT - Head tube (mm)

122

132

142

162

177

197

217

HTA - Head tube angle (°)

70

71

71

72.5

73

73

73.5

STA - Seat tube angle (°)

74.5

74.5

74

74

73.5

73

73

CS - Chain stay lenght (mm)

408

408

408

408

408

408

408

BD - Bottom bracked drop (mm)

70

70

70

66

66

66

66

FO - Fork lenght (mm)

368

368

368

368

368

368

368

SH - Stand over height (mm)

712

735

759

782

802

821

848

S - Stack (mm)

516

529

539

558

575

593

616

R - Reach (mm)

372

373

381

385

390

394

402

WB - Wheel base (mm)

984

981

991

990

995

1005

1014
