Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the power and freedom to extend your trail-riding adventures.

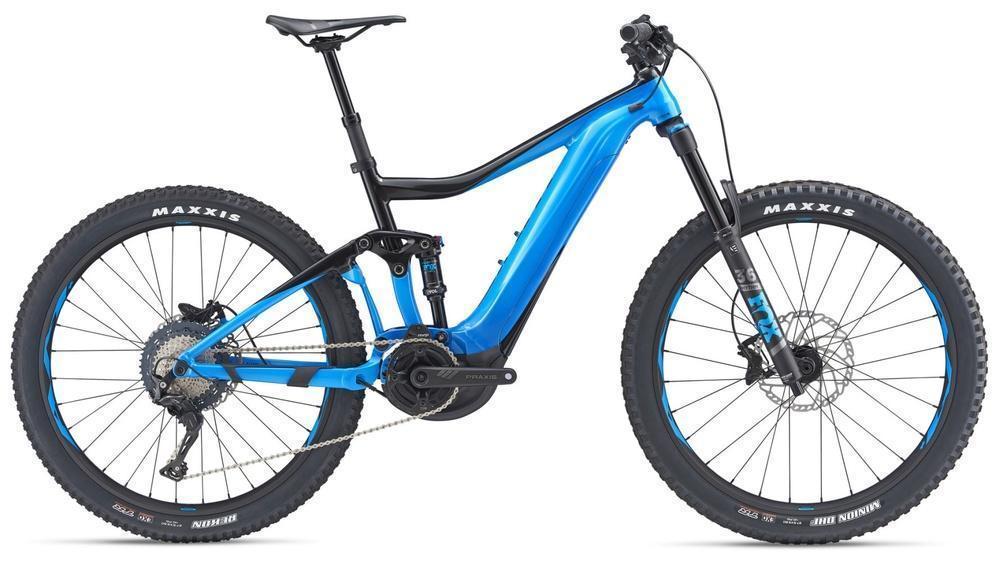

The SyncDrive Pro motor gives the Trance E+ Pro a massive 80Nm of torque and 360 percent support, all controlled by RideControl One. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm in the front, and frame geometry that’s designed for 27.5 wheels, this is a whole new way to tackle technical singletrack trails. Enjoy E-bike riding just the way you want—ride with full power or tune it less aggressively. The EnergyPak is cleanly integrated into the downtube of the lightweight ALUXX SL frame and gives you 500Wh of capacity. The RideControl ONE offers an easy to operate button control for a comfortable ride. It all adds up to a fun day out on the trails.
Key Performance Factors
Total control
ALUXX SL frameset, 27.5 wheels, and 140mm of smooth Maestro suspension travel give you superior control for riding technical terrain.
Powerful motor
High-performance SyncDrive Pro motor with 80Nm of torque and support ratios up to 360 percent lets you ride farther and master all terrain.
RideControl One
Handlebar-integrated control unit for a clean and high end design.
|
Taglie |
XS, S, M, L, XL |
|---|---|
|
Colorazioni |
Black/Blue |
|
Telaio |
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system |
|
Forcella |
Fox 36 Float Rhythm 27.5+ 150mm, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-Bike optimized |
|
Ammortizzatore |
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned |
|
Manubrio |
Giant Contact SL 35 Trail, 35x800mm |
|
Attacco manubrio |
Giant Contact SL 35 |
|
Tubosella |
Giant Contact Switch, dropper, 30,9mm, under bar remote lever |
|
Sella |
Giant Contact, Neutral |
|
Leve del cambio |
Shimano SLX |
|
Deragliatore |
MRP 1X CS custom |
|
Cambio |
Shimano Deore XT, 11-Speed, Shadow+ |
|
Freni |
Shimano BR-MT520, 4-piston, hydraulic disc, 203mm |
|
Comandi freno |
Shimano BL-MT520, i-spec II |
|
Pacco pignoni |
Shimano HG-M7000, 11-46T, 11-Speed |
|
Catena |
KMC e.11 Turbo, EcoProteq, e-bike optimized |
|
Guarnitura |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set |
|---|---|
|
Cerchi |
Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized |
|
Mozzi |
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized |
|
Raggi |
Sapim E-Lite [r] Race [f], e-bike optimized |
|
Coperture |
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis Rekon 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R] |
|
Extras |
Giant EnergyPak 6A Smart charger (60% charge in 60minutes)Tubeless kit |
|
Motore |
Giant SyncDrive Pro, 360% tuneable support, powered by YAMAHA |
|
Sensors |
Giant PedalPlus 4-sensor technology |
|
Display |
Giant RideControl ONE, remote button |
|
Batteria |
Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion |
|
Peso |
Quanto pesa una bicicletta? E' una domanda che ci viene posta sovente. Non ci sono standard produttivi capaci di rispondere con esattezza dando indicazione sul peso delle biciclette. Esistono variazioni di peso in base alla taglia, alla composizione del telaio, alle finiture e alla componentistica. Giant ritiene che il consumatore finale debba informarsi direttamente dal suo Rivenditore Autorizzato di fiducia. Solo così saprà qual è il peso reale della sua bicicletta. |
Guida taglie e geometrie
La tabella taglie va usata soltanto come referenza. Per favore contattaci per determinare la tua taglia corretta.
|
|
|
XS |
S |
M |
L |
XL |
|---|---|---|---|---|---|---|
|
A |
Lunghezza tubo sella (mm) |
380 |
406 |
445 |
482 |
507 |
|
B |
Angolo tubo sella |
74,0° |
74,0° |
74,0° |
74,0° |
74,0° |
|
C |
Lunghezza tubo orizzontale (mm) |
570 |
585 |
610 |
630 |
655 |
|
D |
Lunghezza tubo sterzo (mm) |
95 |
95 |
100 |
110 |
130 |
|
E |
Angolo sterzo |
66,5° |
66,5° |
66,5° |
66,5° |
66,5° |
|
F |
Rake forcella (mm) |
46 |
46 |
46 |
46 |
46 |
|
G |
Trail (mm) |
109 |
109 |
109 |
109 |
109 |
|
H |
Interasse (mm) |
1169 |
1184 |
1210 |
1231 |
1259 |
|
I |
Lunghezza carro posteriore (mm) |
470 |
470 |
470 |
470 |
470 |
|
J |
Drop movimento centrale (mm) |
15 |
15 |
15 |
15 |
15 |
|
K |
Stack (mm) |
579 |
579 |
584 |
593 |
611 |
|
L |
Reach (mm) |
403 |
418 |
442 |
460 |
479 |
|
M |
Altezza stand over (mm) |
728 |
739 |
740 |
772 |
792 |
|
N |
Larghezza manubrio c/c (mm) |
780 |
780 |
780 |
780 |
780 |
|
O |
Lunghezza attacco manubrio (mm) |
40 |
40 |
50 |
50 |
60 |
|
P |
Larghezza pedivella (mm) |
165 |
165 |
170 |
170 |
170 |
|
Q |
Dimensione ruote |
27.5+ |
27.5+ |
27.5+ |
27.5+ |
27.5+ |
